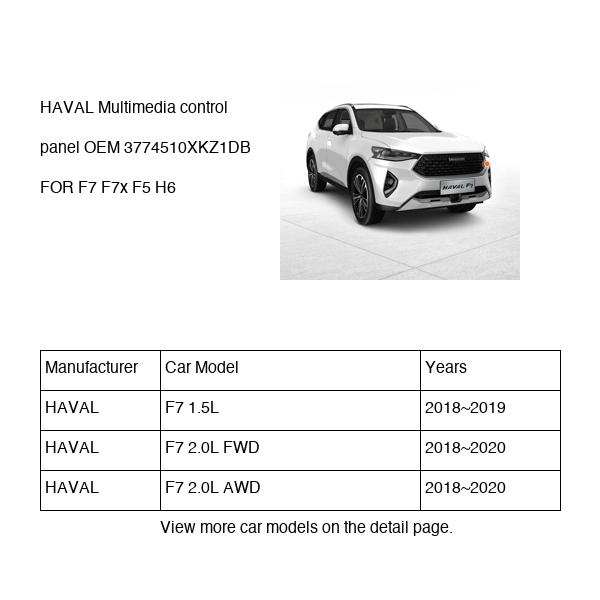

Common Failures of HAVAL 3774510XKZ1DB Multimedia control panel for F7 1.5L/F7 2.0L FWD/F7 2.0L AWD/F7x 1.5L/F7x 2.0L FWD/F7x 2.0L AWD/F5 1.5L 7AT/H6 II 1.5L 7AT FWD/H6 II 2.0L 7AT FWD
- Display Malfunctions: The multimedia control panel (OE: 3774510XKZ1DB) in F7 and F7x models often shows flickering or black screens. This issue can disrupt the user experience.
- Touch - Screen Unresponsiveness: In F5 and H6 II vehicles, the touch - screen function of the 3774510XKZ1DB multimedia control panel may become unresponsive, making it difficult to operate various functions.
Maintenance Tips of HAVAL 3774510XKZ1DB Multimedia control panel for F7 1.5L/F7 2.0L FWD/F7 2.0L AWD/F7x 1.5L/F7x 2.0L FWD/F7x 2.0L AWD/F5 1.5L 7AT/H6 II 1.5L 7AT FWD/H6 II 2.0L 7AT FWD
- Before installing the HAVAL multimedia control panel (OE# 3774510XKZ1DB), ensure the vehicle's power is off to prevent electrical shock. This applies to all models like F7 1.5L and H6 II 1.5L 7AT FWD.
- Check the compatibility of the control panel with your specific HAVAL model, such as F7x 2.0L AWD. Make sure all connectors match.
- Clean the installation area thoroughly to avoid dust interfering with the panel's operation. It's crucial for a seamless fit in F5 1.5L 7AT and other models.
- When connecting cables, follow the wiring diagram carefully. Incorrect connections can lead to malfunctions in the multimedia system of HAVAL vehicles.
- Test the multimedia control panel before final installation. This step helps detect any issues early, ensuring proper functionality across all HAVAL F - series and H6 models.
Electrical Hazard Warning – The multimedia control panel contains live electrical components. Always disconnect the battery before installation to avoid short - circuits and potential injuries.
