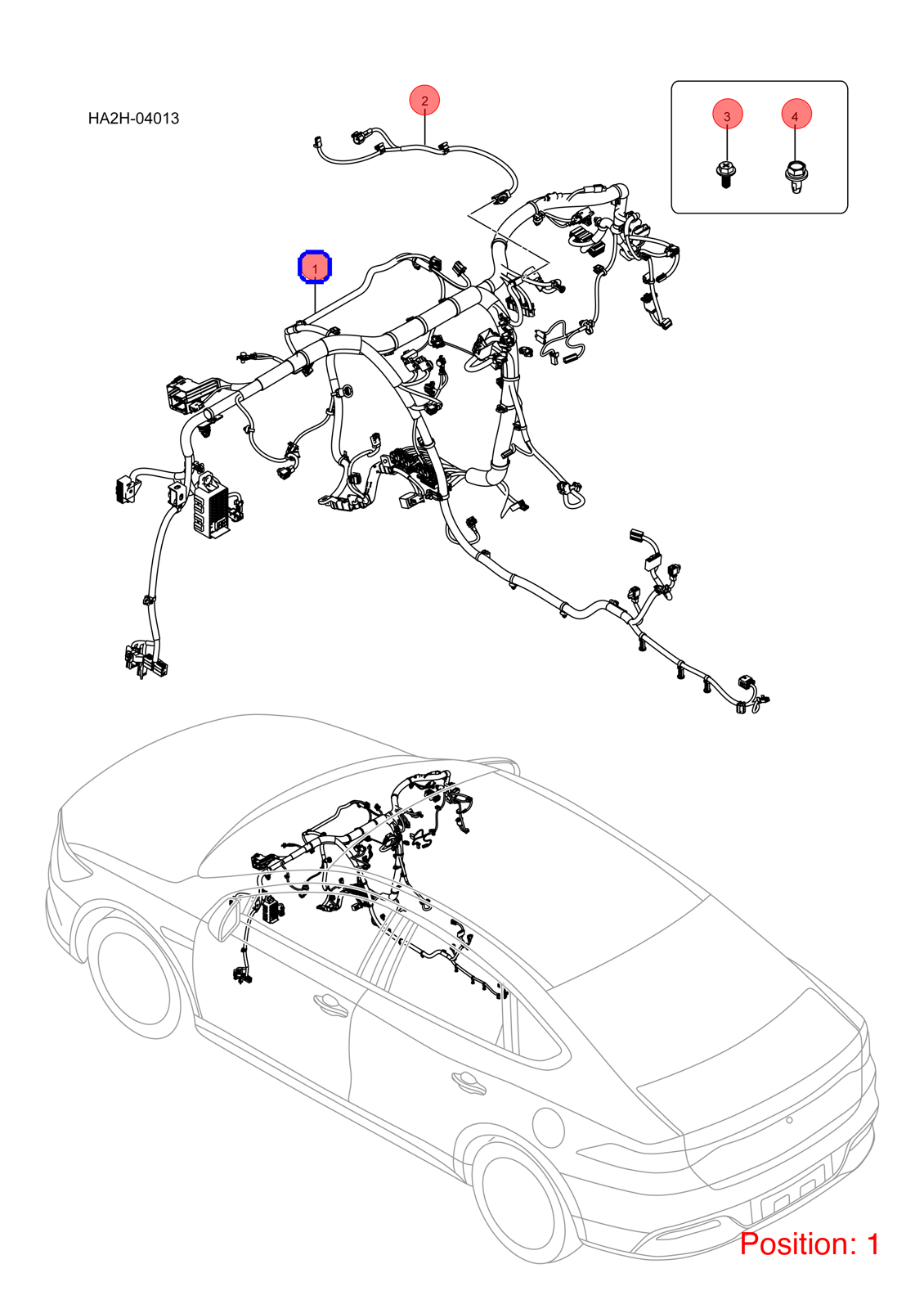

Common Failures of BYD 1453719100 Instrument panel wiring harness for KING DM-i/Chazor DM-i/Seal5 DM-i/Destroyer 05 DM-i
- Short - circuit in Instrument panel wiring harness (OE: 1453719100): Common in KING DM - i, Chazor DM - i, Seal5 DM - i, and Destroyer 05 DM - i models, causing electrical malfunctions.
- Wiring insulation damage in Instrument panel wiring harness: Found frequently in these DM - i series vehicles, leading to potential electrical leakage.
Maintenance Tips of BYD 1453719100 Instrument panel wiring harness for KING DM-i/Chazor DM-i/Seal5 DM-i/Destroyer 05 DM-i
- When replacing the BYD instrument panel wiring harness (OE# 1453719100) in models like KING DM - i, Chazor DM - i, Seal5 DM - i, and Destroyer 05 DM - i, first disconnect the battery to prevent electrical shock.
- Inspect the new BYD instrument panel wiring harness carefully for any signs of damage before installation. Ensure all connectors are in good condition.
- Route the wiring harness along the original path to avoid interference with other components in the BYD models. Secure it properly with clips.
- Match the connectors precisely according to the markings on the wiring harness. Incorrect connection can lead to instrument malfunctions in BYD vehicles.
- After installation, test all the instrument functions in the BYD KING DM - i, Chazor DM - i, Seal5 DM - i, and Destroyer 05 DM - i to confirm the wiring harness works correctly.
Electrical Hazard Warning - The instrument panel wiring harness in BYD models carries high - voltage electricity. Ensure all power is off and follow safety procedures during installation.
